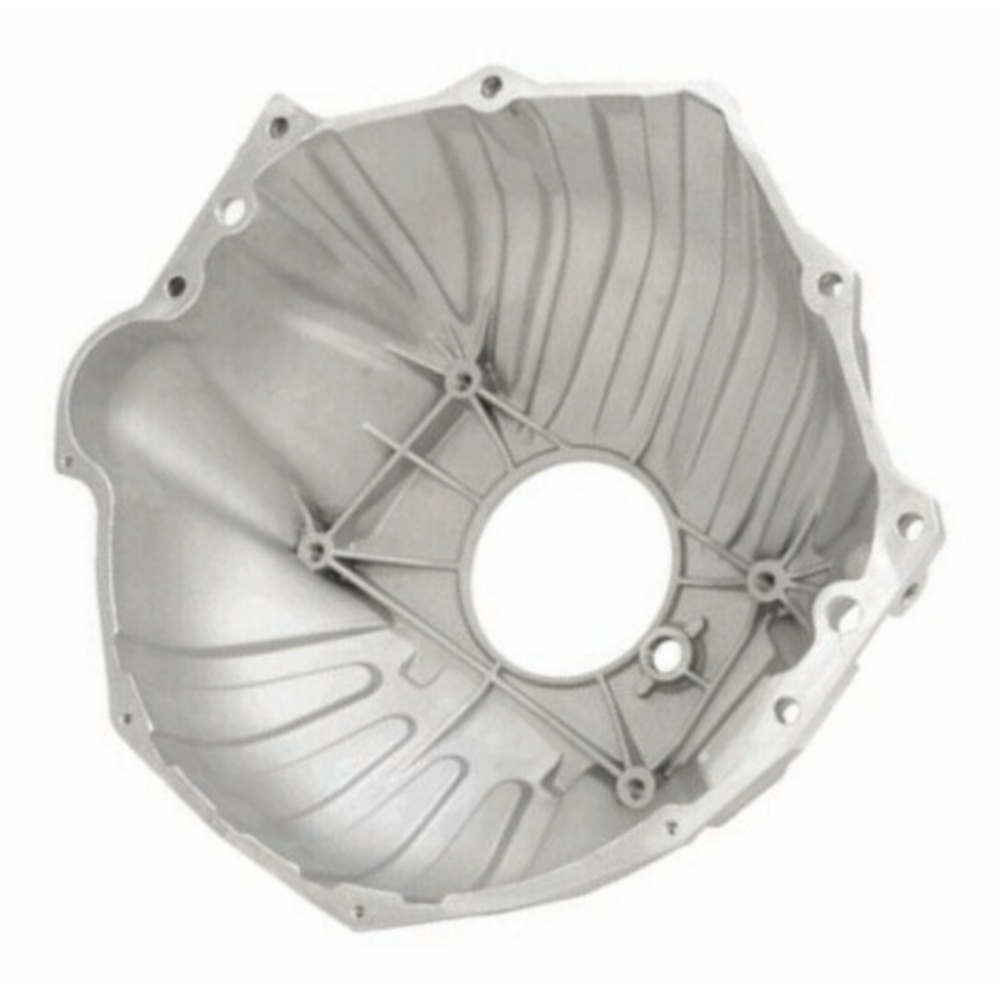

This 11" Performance Cast Aluminum Bellhousing is a reproduction of the original 3899621 bellhousing used on GM models with Big Block & Small Block engines equipped with an 11" clutch. This performance aluminum bellhousing does not have the GM Part # 3899621 casting number but will look, fit, and perform just like original. If you are doing a restoration of an early muscle car, or just want the correct bellhousing to finish that rod project, this bellhousing is the perfect part!
Kit Includes:
Cast Aluminum Performance Bellhousing
Replaces GM Part # 3899621
Cast Aluminum Housing
Works with GM transmissions with a 4.675" O.D. Bearing Retainer
Clears 168 tooth 14" Flywheels with factory 11" clutch discs
1/2"-13 tapped hole for z-bar manual clutch linkage, if needed
Fits ALL Small Block & Big Block Chevrolet engines regardless of factory clutch size

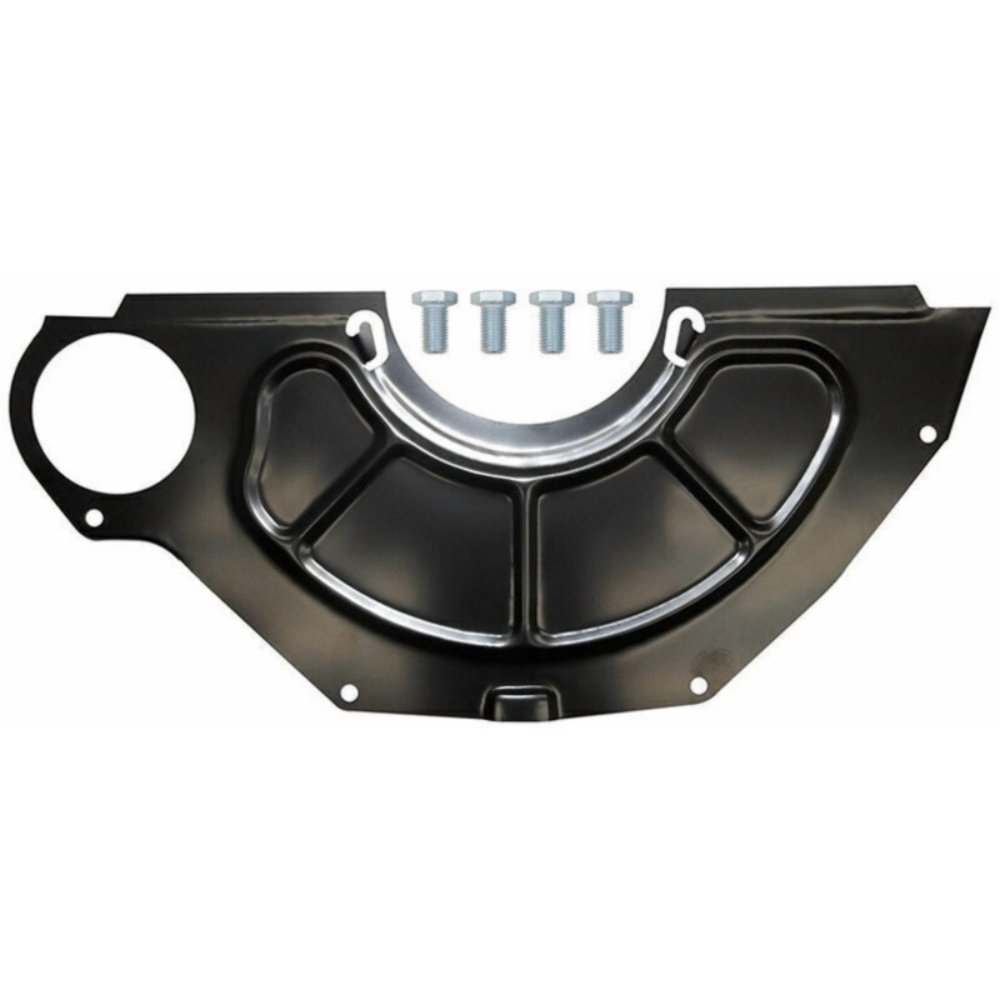

Flywheel Inspection Cover
Replaces GM Part # 3843943
Includes 1/4" bolts to install inspection shield
Exact Replica of the Original

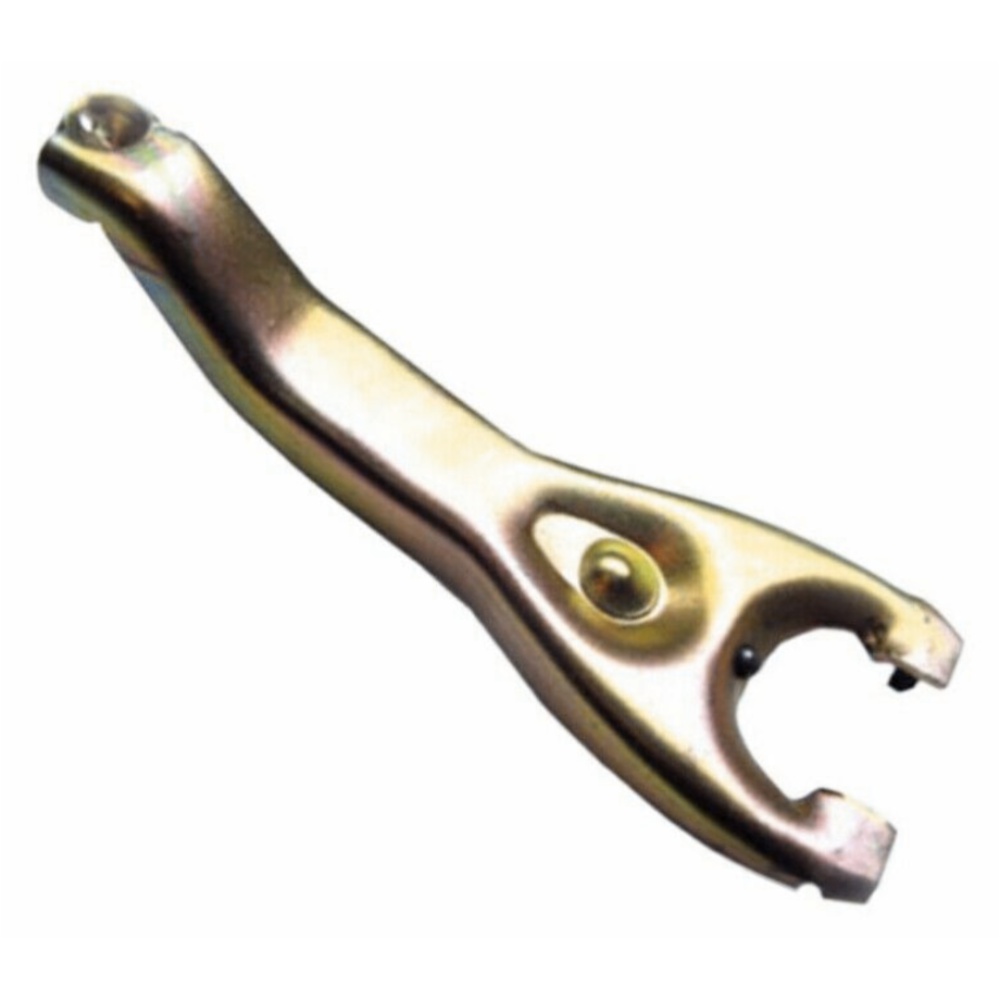

Clutch Fork with Ball Retaining Spring
Replaces GM Part # 3892632
Throwout Bearing
Replaces GM Part # 19245400
Exact Replica of the original
Designed to effectively reduce friction
Made of high quality materials for long service life
Clutch Fork Boot
Replaces GM Part # 3993851
Molded from E.P.D.M rubber for a snug fit that will last for years
Standard Clutch Fork Pivot Ball
Replaces GM Part # 3729000
Installs into bellhousing to support clutch fork
13/16"-16 Threads, 1 1/2" total length end to end
Fitment
1964-1988 Chevy Chevelle, Malibu, Monte Carlo*
1959-1987 Chevy El Camino*
1963-1981 Chevy Corvette*
1967-1981 Chevy Camaro*
1968-1974 Chevy II, Nova*
*With Manual Transmissions & 168 tooth Flywheel
Will not work on 1962-1967 Chevy II & Chevy Nova models as the size of the transmission tunnel is too narrow
Will not work on Monza or Vega as they both used a cable operated 10.5" clutch with the pivot on the other side. The clutch fork was also angled about 45 degrees not straight across
