Front Wheel Bearing Hub Assembly Set of 2 Driver and Passenger Side
Front Wheel Hub Bearings Pair 2 for Chevy Silverado 1500 Classic GMC Sierra 1500
Qty. | Part | Description
2 | HB615177 | Wheel Hub Bearing Assemblies
Compatibility Chart
Make | Model | Year | Notes | Position
Cadillac | Escalade | 2002 - 2005 | 5.3L, 6.0L | Rear Wheel Drive | 6 Stud | Front
Cadillac | Escalade | 2006 | Rear Wheel Drive | 6 Stud | Front
Chevrolet | Avalanche 1500 | 2002 - 2006 | Rear Wheel Drive | 6 Stud | Front
Chevrolet | Express 1500 | 2003 - 2013 | 4.3L, 5.3L | Rear Wheel Drive | 6 Stud | Front
Chevrolet | Express 2500 | 2003 - 2005 | 4.3L, 4.8L, 5.3L, 6.0L | Rear Wheel Drive | 6 Stud | Front
Chevrolet | Silverado 1500 | 1999 - 2003 | 4.3L, 4.8L, 5.3L | Rear Wheel Drive | 6 Stud | Front
Chevrolet | Silverado 1500 | 2004 | 4.3L, 4.8L, 5.3L, 6.0L | Rear Wheel Drive | 6 Stud | Front
Chevrolet | Silverado 1500 | 2005 - 2006 | 4.3L, 4.8L, 5.3L, 6.0L | Rear Wheel Drive | 6 Stud | 16 Inch Wheels | Front
Chevrolet | Silverado 1500 Classic | 2007 | 4.3L, 4.8L, 5.3L, 6.0L | Rear Wheel Drive | 6 Stud | 16 Inch Wheels | Front
Chevrolet | Suburban 1500 | 2000 - 2005 | Rear Wheel Drive | 6 Stud | Front
Chevrolet | Suburban 1500 | 2006 | 5.3L | Rear Wheel Drive | 6 Stud | Front
Chevrolet | Tahoe | 2000 | 4.8L, 5.3L, 5.7L | Rear Wheel Drive | 6 Stud | Front
Chevrolet | Tahoe | 2001 - 2006 | 4.8L, 5.3L | Rear Wheel Drive | 6 Stud | Front
GMC | Savana 1500 | 2003 - 2013 | 4.3L, 5.3L | Rear Wheel Drive | 6 Stud | Front
GMC | Savana 2500 | 2003 - 2005 | 4.3L, 4.8L, 5.3L, 6.0L | Rear Wheel Drive | 6 Stud | Front
GMC | Sierra 1500 | 1999 - 2003 | 4.3L, 4.8L, 5.3L | Rear Wheel Drive | 6 Stud | Front
GMC | Sierra 1500 | 2004 | 4.3L, 4.8L, 5.3L, 6.0L | Rear Wheel Drive | 6 Stud | Front
GMC | Sierra 1500 | 2005 - 2006 | 4.3L, 4.8L, 5.3L, 6.0L | Rear Wheel Drive | 6 Stud | 16 Inch Wheels | Front
GMC | Sierra 1500 Classic | 2007 | 4.3L, 4.8L, 5.3L, 6.0L | Rear Wheel Drive | 6 Stud | 16 Inch Wheels | Front
GMC | Yukon | 2000 - 2006 | 4.8L, 5.3L | Rear Wheel Drive | 6 Stud | Front
GMC | Yukon XL 1500 | 2000 | Rear Wheel Drive | 6 Stud | Front
GMC | Yukon XL 1500 | 2001 - 2006 | 5.3L | Rear Wheel Drive | 6 Stud | Front
Product Details
Weight: 25.9 lbs
Height: 7.7 in
Width: 8.3 in
Length: 11.4 in

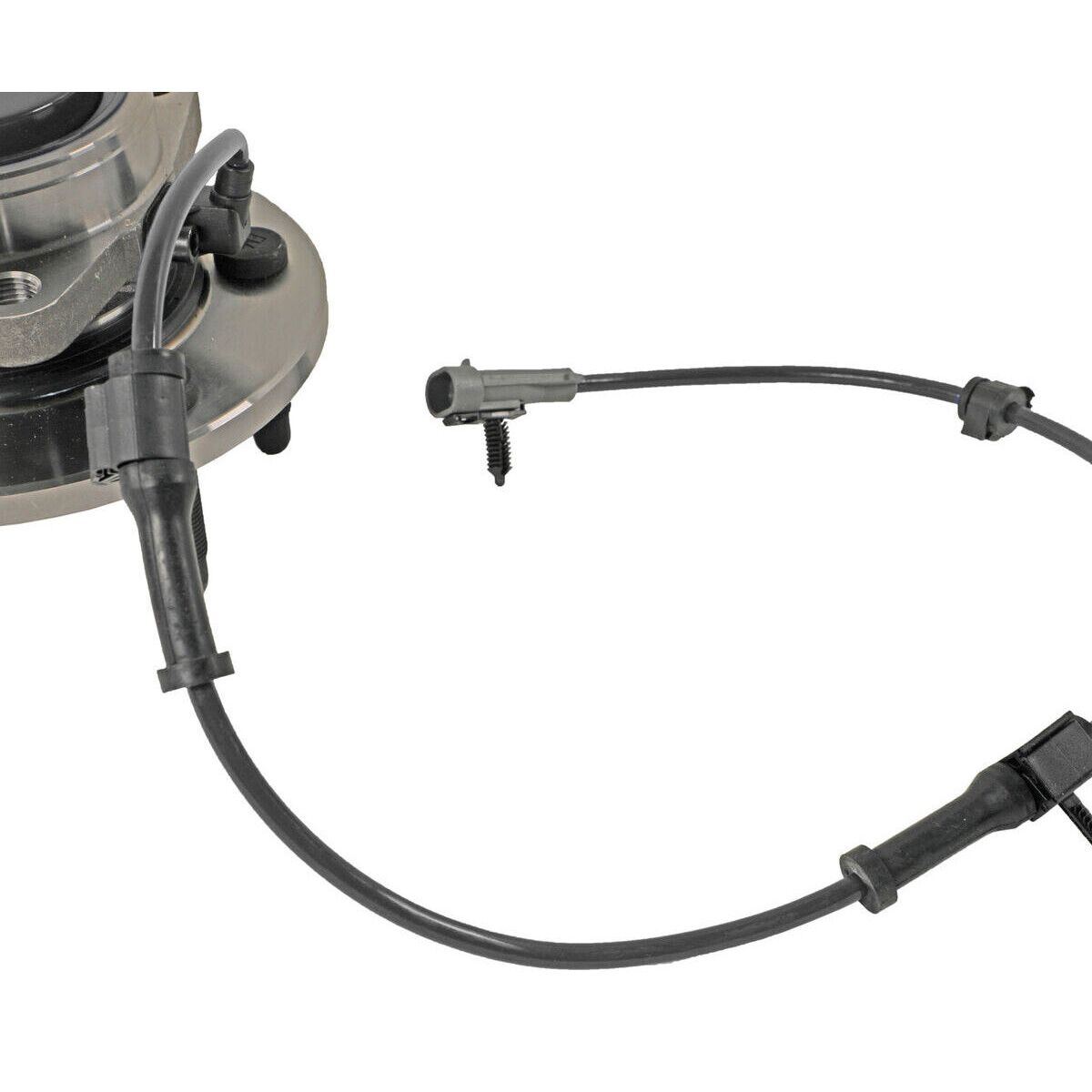

ABS Sensor Included: Yes
Anti Lock Braking System: Yes
Anti Lock Braking System Type: Passive
Bearing Generation: 3
Bolt Circle Diameter: 5.5 in. / 139.7 mm
Bolt Pattern: 3 x 5.5 in
Bolt Size: M141.5
Bolt Thread Pitch: M141.5
Brake Pilot Diameter: 3.09 in. / 78.4 mm
C-Clip Included: No
Fitment Type: Direct Replacement
Flange Bolt Hole Quantity: 6
Flange Diameter: 7.05 in. / 179 mm
Flange Offset: 1.96 in. / 49.7 mm
Flange Shape: Circle
Hardware Included: No
Hub Pilot Diameter: 3.91 in. / 99.3 mm
ISO Specification: ISO 16949
Items Included: N/A
Knuckle Bolt Circle Diameter: 4.96 in. / 126 mm
Knuckle Bolt Hole Size: M141.5
Lugs Included: Yes
Material: Steel
Surface Finish: Polished, Rust Protected
Type: Tapered Bearing
Wheel Lug Quantity: 6
Wheel Pilot Diameter: 3.06 in. / 77.7 mm
California Proposition 65: Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

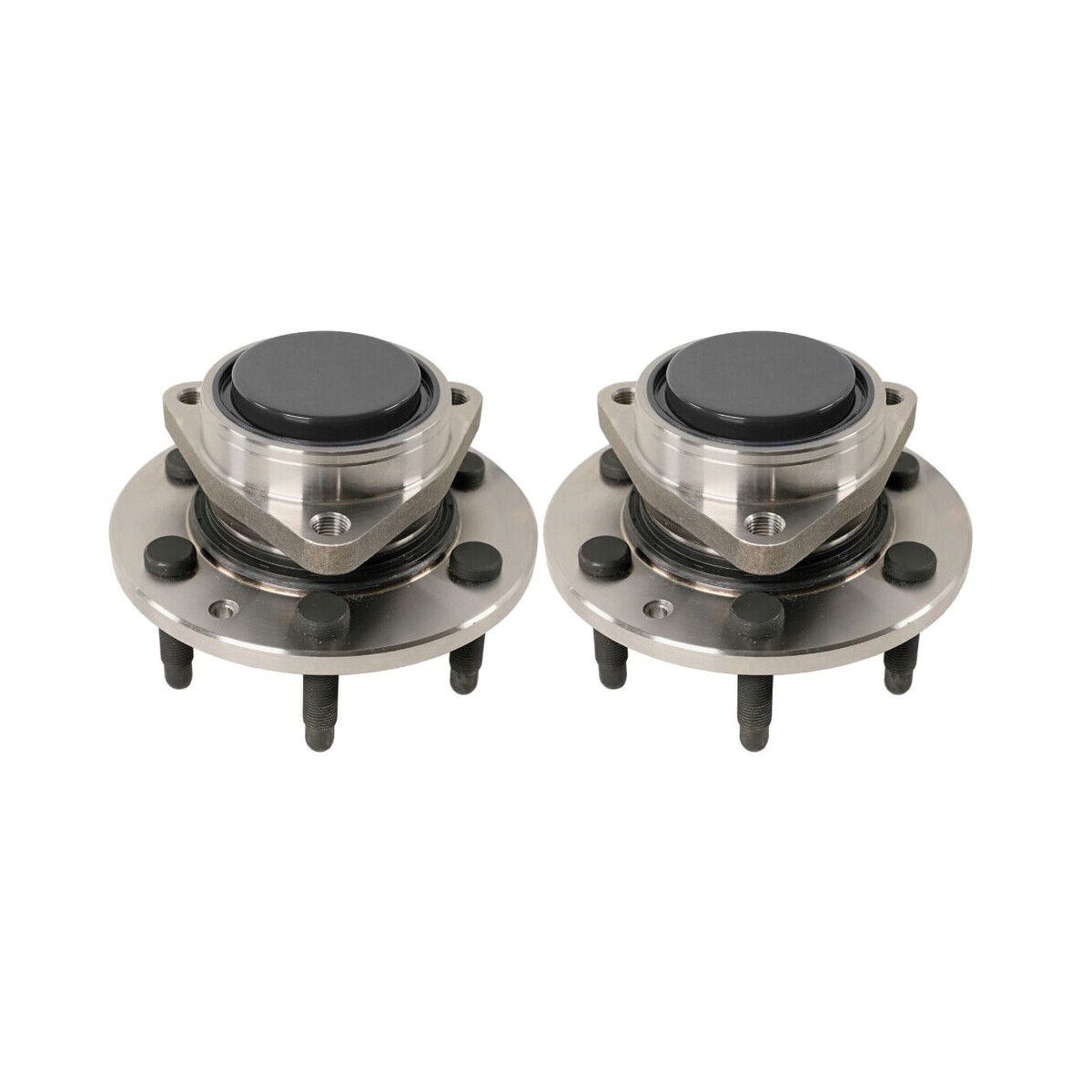

Wheel Hub Bearing Assemblies
Distributed by AutoShack
ISO / IATF 16949 Certified, direct fit and made from high quality materials to meet orginal specifications
Coated with an anti-corrosion finish to provide a longer life
Anti-lock braking system (ABS) tested during assembly to ensure safe and optimal function
High quality seal design protects against water damage and contamination
Designed to fit your specific vehicle - no modification required
Wheel hub bearings support the weight of a vehicle and enable wheels to rotate smoothly, making them a critical component of a vehicle's wheel assembly. Operating a vehicle with a faulty hub bearing compromises the entire wheel assembly, which reduces brake performance and puts you at risk of losing control of your vehicle
Hub bearings should always be replaced in pairs (front or rear). This reduces the overall time required to replace two parts at different times. In most cases, if one fails the other is close behind
This part must be torqued to vehicle specifications to prevent failure
Please note product bundle will ship in multiple packages with separate individual tracking numbers
Professional Installation is Highly Recommended
